Up to 60,000 12oz PET coffee cups/hour
Extreme cutting force of up to 750 kN
Over 200 mm Product depth
Up to 20% less film consumption
With 680 x 320 mm and 735 x 465 mm multi forming area options for selection
S70 SPEEDFORM
Entry-level model of the S-LINE
Designed for small and medium production volumes
Suitable for cups with a diameter of less than 80 mm
Widely applicable with third-party tools
Maximum flexibility in terms of tools and products
S70 PLUS SPEEDFORM
Upgraded forming area based on S70
Higher output and improved productivity
Optimized for portion cups, medical containers, and jam cups
Designed for small and medium production volumes
Suitable for cups with a diameter of less than 80 mm
Widely applicable with third-party tools
S75 SPEEDFORM
The most popular model on the market
Designed for large-volume production
Suitable for cup diameters above 80 mm
Widely compatible with third-party tooling
Extensively used for 98 mm PET coffee cups

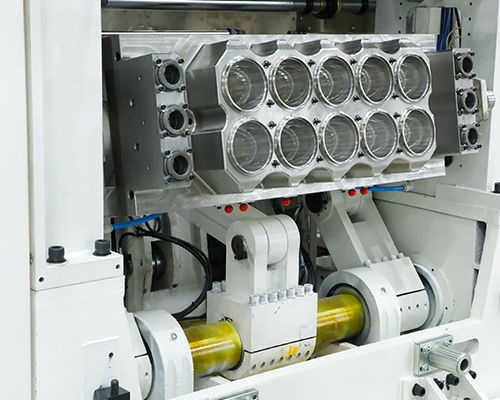

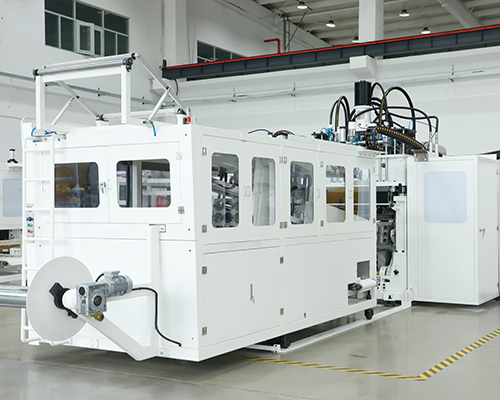

With its unique tilting technology, decentralized drive system, and robust cast-steel forming station, the S-LINE machine is suitable for producing both simple and complex cups.

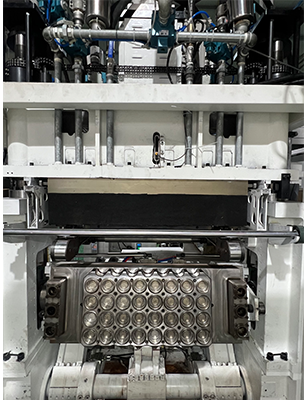

Forming and cutting are completed in the same station. Combined with the optimized 360-degree automatic stacking system, these high-end machines deliver exceptional efficiency and stability. In addition, the single-wire control system used in the drive technology significantly reduces energy consumption.
S-LINE is characterized by high efficiency, flexibility and stability in the production of a wide range of products. Thanks to the fixed top yoke and the swiveling bottom table that performs all related movements, all S-LINE machines achieved perfectly balanced operation and first-class product quality. At the same time, they offer significant advantages in terms of maximum tool life.
Suitable for producing various thick-sheet PET coffee cups, PP bubble tea cups, drinking cups, etc., with sizes ranging from 5oz to 44oz. Thanks to optimized material distribution, even cups with very thin walls can be produced without issues.
Whether round, oval, or rectangular, S-LINE machines are widely used to produce margarine tubs, yogurt containers, sauce tubs, and similar products with varying depths and mechanical properties.
The S-LINE thermoforming system, integrated with a high-precision punching and stacking unit, is an ideal solution for the efficient production of high-quality coffee capsules and plant pots.
Less raw material consumption due to optimum film usage.
By using regenerative units in the drive technology.
Increased productivity and less personnel in fully automated systems.
Apart from the robust design and the widely proven quality, several sophisticated technological innovations in the machines of the S-LINE provide a maximum of power and product quality.

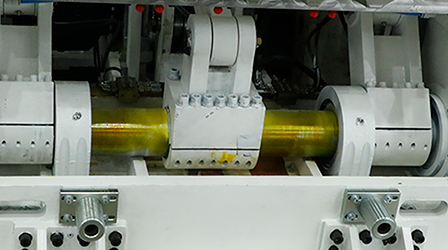

Innovative and proven single shaft technology brings the best transmission and very smooth and uniform movement.

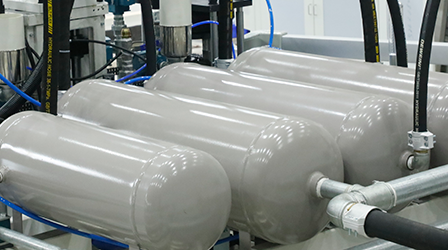

Four high-power air valves and four large form air tanks ensure faster filling and venting the tool. This leads to high-quality forming results and increases the cycle speed of different products.

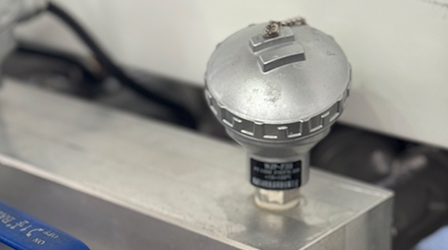

The direct cooling system in the S-LINE machine ensures the precise control of the temperature of the cooling water. This results in extended tool life and easy maintenance.
CAN bus communication ensures high baud rates, stable signal transmission, zero cumulative errors, and simplified and faster wiring.

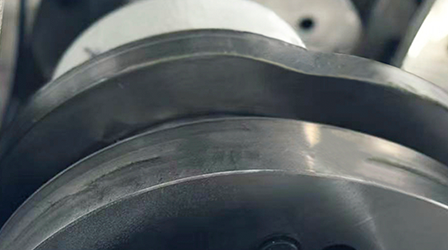

The punching depth adjustment is achieved through the one eccentric shaft set on the knee lever axis. This ensures the highest accuracy and product safety, as well as a very low maintenance workload. An additional eccentric shaft set synchronizes the tilting motion of the lower forming table, coordinating forming and stacking operations. The system operates efficiently and stably, with no homing required after power interruption.
TECHNICAL DATA
| Model | S70 SPEEDFORM | S70 PLUS SPEEDFORM | S75 SPEEDFORM |
| Forming area max. | 680x320 mm 26.77 x 12.6" |
680x335 mm 26.77 x 13.19" |
735x465 mm 28.94 x 18.31" |
| Film thickness max./min. | 0.3 - 2.2 mm 0.012 x 0.087" |
0.3 - 2.2 mm 0.012 x 0.087" |
0.3 - 2.5 mm 0.012 x 0.098" |
| Depth of draw max. standard | 150/(200) mm 5.91"/(7.87") |
150/(200) mm 5.91"/(7.87") |
180/(220) mm 7.09"/(8.66") |
| Clamping pressure max. | 380 kN 85,427 lbf |
380 kN 85,427 lbf |
750 kN 168,607 lbf |
| Cycles per minute | 45 | 45 | 45 |
| Top heater output max. | 77.5 kW | 86 kW | 100 kW |
| Bottom heater output max. | 77.5 kW | 86 kW | 100 kW |
| Operating air pressure | 6 - 8.5 bar 87 - 123 psi |
6 - 8.5 bar 87 - 123 psi |
7 - 8.5 bar 102 - 123 psi |
| Weight ca. | 12,000 kg 26,455 lbs |
12,500 kg 27,558 lbs |
16,000 kg 35,274 lbs |

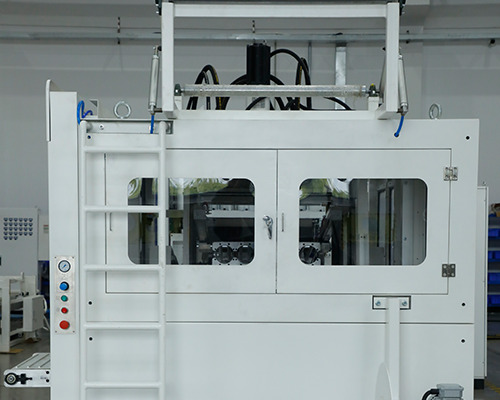

Designed for ultra-fast changeovers, the S-LINE features an advanced, integrated tool handling system. Safe and ergonomic handling with a standardized overhead hoist and quick-disconnect couplings for all media lines. Achieve a complete tool change in as little as 45 minutes with a single operator, minimizing non-productive time.
Our reliable cloud-based remote support is available for all S-LINE machines. This service allows our expert technicians to connect to your machine swiftly and securely, delivering key benefits: Real-time visualization of production status and energy data. Remote process optimization and performance tuning for maximized throughput. Enhanced process stability and proactive alerts to reduce unplanned downtime. Data-driven maintenance scheduling and efficient resource allocation; lowering overall operational costs.
